Bottom Brackets

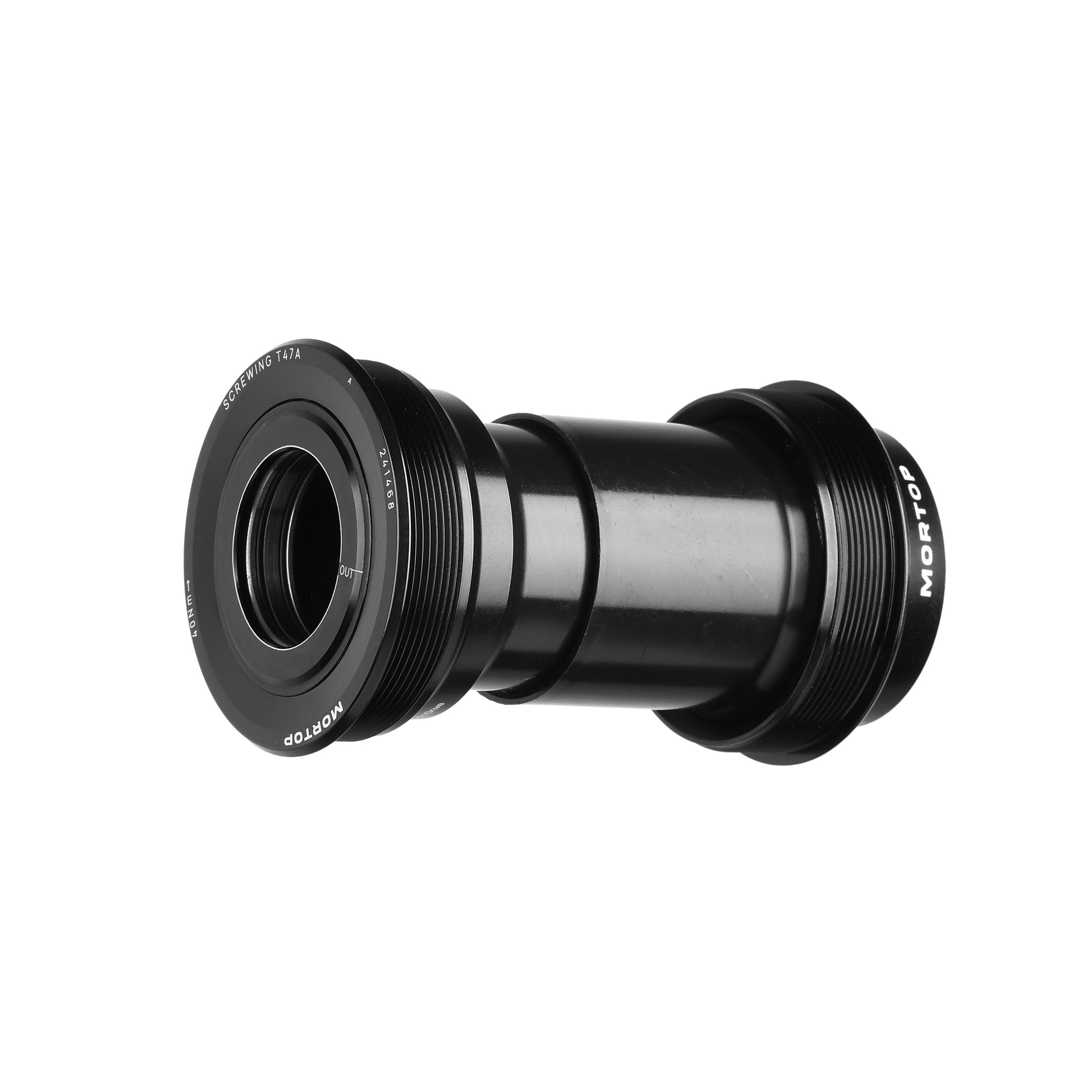

Screwing BB 24 Ultra
Tapered Profile
Fun 5° bearing technology not only enables automatic coaxialization for improved power output. Its easy maintenance feature ensures that it can operate smoothly for extended periods, while the angular contact bearing further enhances its reliability and longevity.
Simplification and challenges
The 20T internal locking mechanism is not only designed to increase installation fault tolerance while maintaining an aesthetically pleasing appearance. It also features a centre tube that prevents foreign object intrusion, making it weather-resistant and capable of overcoming a wide range of challenges.
Ceramic Rolling
This technology incorporates ceramic beads with low resistance that are immune to rust, deformation, and bonded with nano grease. These features provide the benefits of reduced resistance, faster running speeds, and exceptional water resistance, surpassing the performance of conventional steel balls.
General
| BB Type Threaded |
| Material Aluminum cups |
| Bearing Compatibility BBA24 or BBA22 |
Bearing
| Bearing Type Fun 5° |
| Bearing material Ceramic |
In The Box
| 24mm Spindle
2 Bottom Bracket cups 2 24 Fun 5° Bearings 2 Dust alloy covers 2 1mm Ø24mm spacers 2 5mm Ø24mm spacers 3 2.5mm cup spacers(MTB 68mm-73mm) BSA Accessories 2 0.3mm cup spacers BSA Accessories 2 0.5mm cup spacers BSA Accessories 2 1mm cup spacers(MTB to Road) BSA Accessories |
| 22mm Spindle
2 Bottom Bracket cups 1 24 Fun 5° Bearing 1 22 Fun 5° Bearing 2 Dust alloy covers 2 1mm Ø24mm spacers 2 5mm Ø24mm spacers 3 2.5mm cup spacers(MTB 68mm-73mm) BSA Accessories 2 0.3mm cup spacers BSA Accessories 2 0.5mm cup spacers BSA Accessories 2 1mm cup spacers(MTB to Road) BSA Accessories 2 Spring spacers |
| Item | Spec | Shell DIA | Shell Width | Crankset | Weight |
|---|---|---|---|---|---|
| BSA24AC | BSA | Thread 34mm | 68-73mm | Shimano or 24mm axle crankset | 74.5g |
| BSA22AC | BSA | Thread 34mm | 68-73mm | Sram GXP | 75.9g |
| ITA24AC | ITA | Thread 35mm | 70mm | Shimano or 24mm axle crankset | 78.6g |
| ITA22AC | ITA | Thread 35mm | 70mm | Sram GXP | 80.3g |
| T47E24AC | T47 | Thread 47mm | 68/73mm | Shimano or 24mm axle crankset | 115.7g |
| T47E22AC | T47 | Thread 47mm | 68/73mm | Sram GXP | 117.3g |
| T47I24AC | T47 | Thread 47mm | 86.5-92mm | Shimano or 24mm axle crankset | 111.2g |
| T47I22AC | T47 | Thread 47mm | 86.5-92mm | Sram GXP | 112.7g |
As bicycle experts, we prioritize not only the weight of our products, but most importantly, their performance and reliability. That's why we're proud to offer a lifetime warranty program, which underscores our commitment to providing you with top-quality products that will perform well and last for years to come. We firmly believe that this exceptional warranty program will give you the peace of mind you need to trust in our brand and the products we offer.
