SKU: L8624C-01

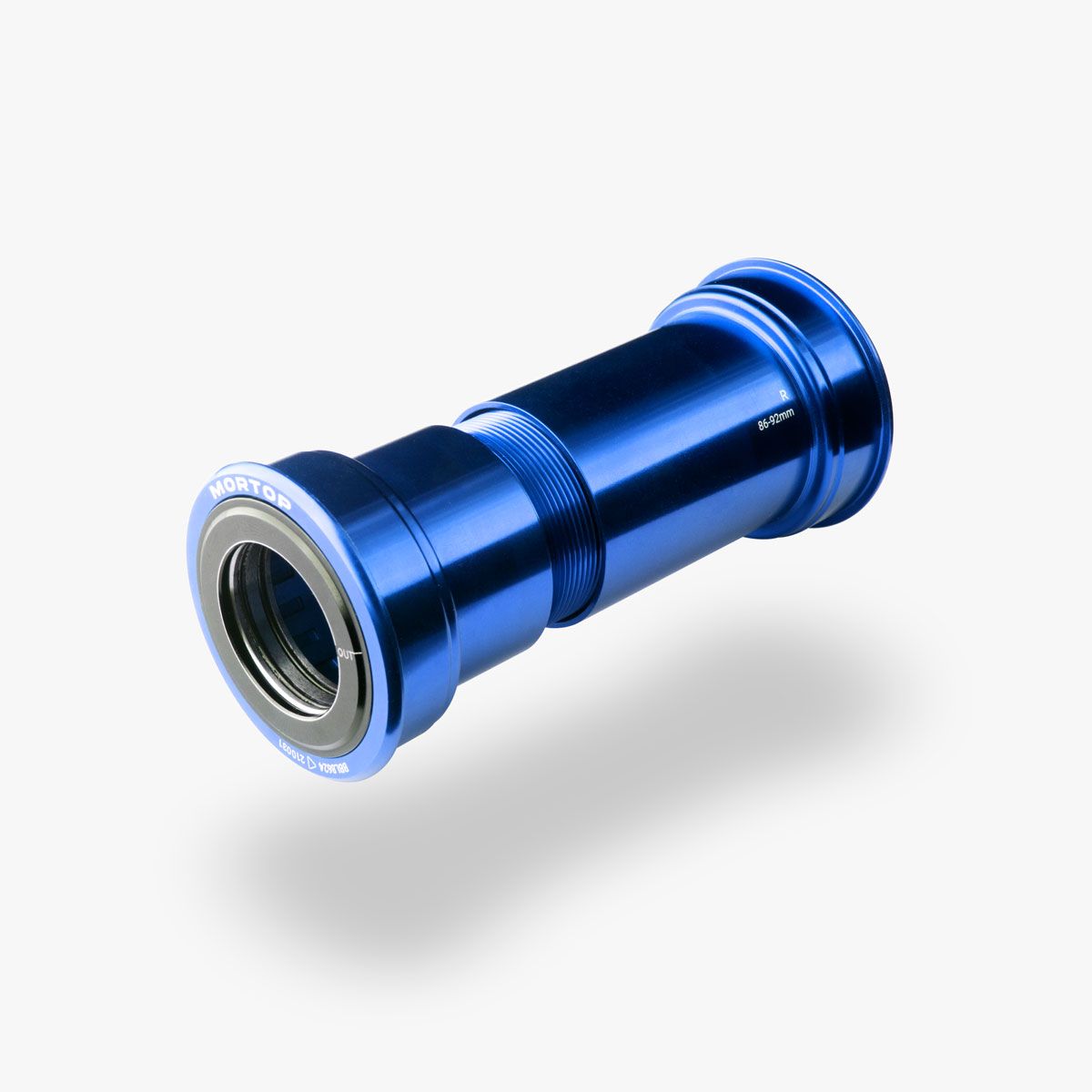

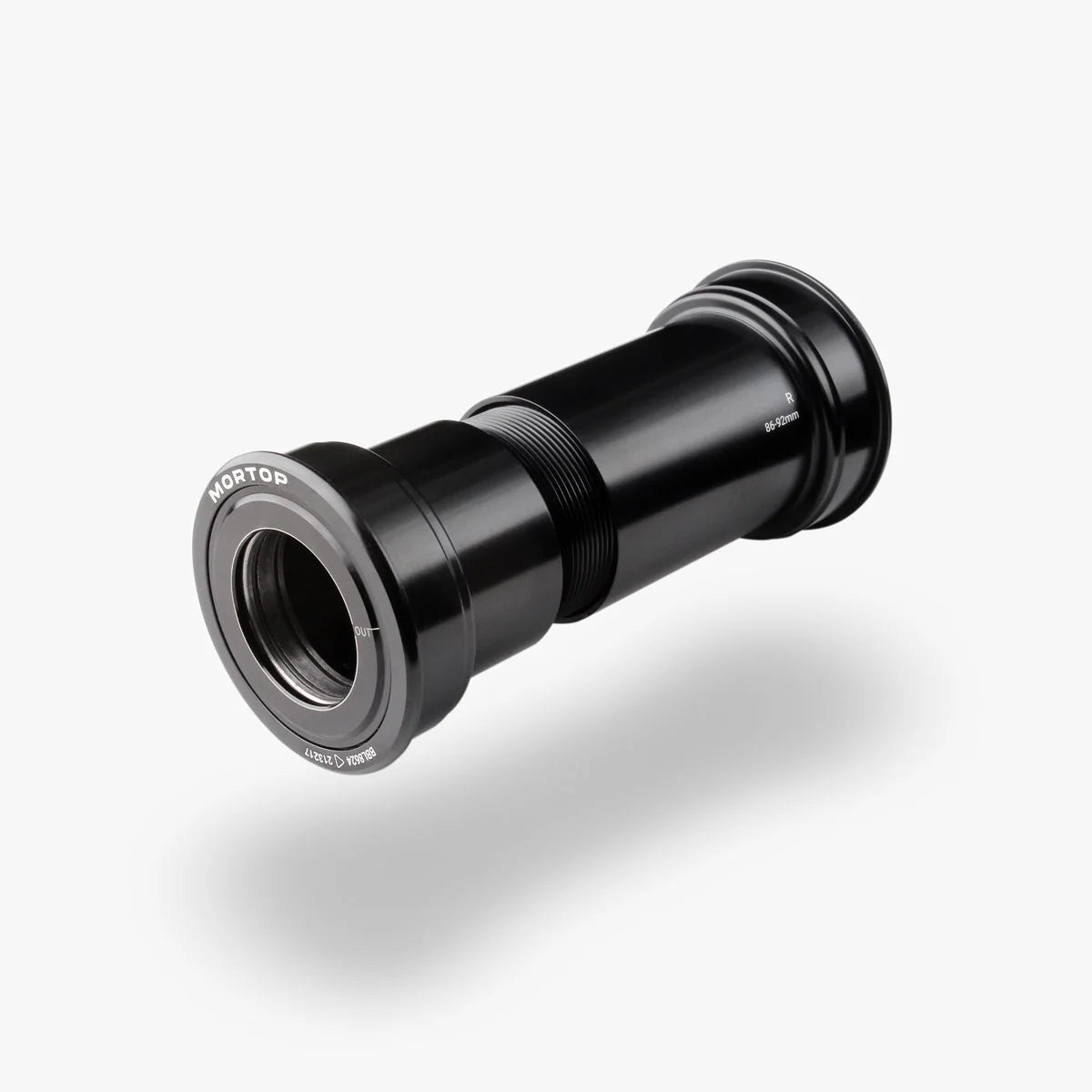

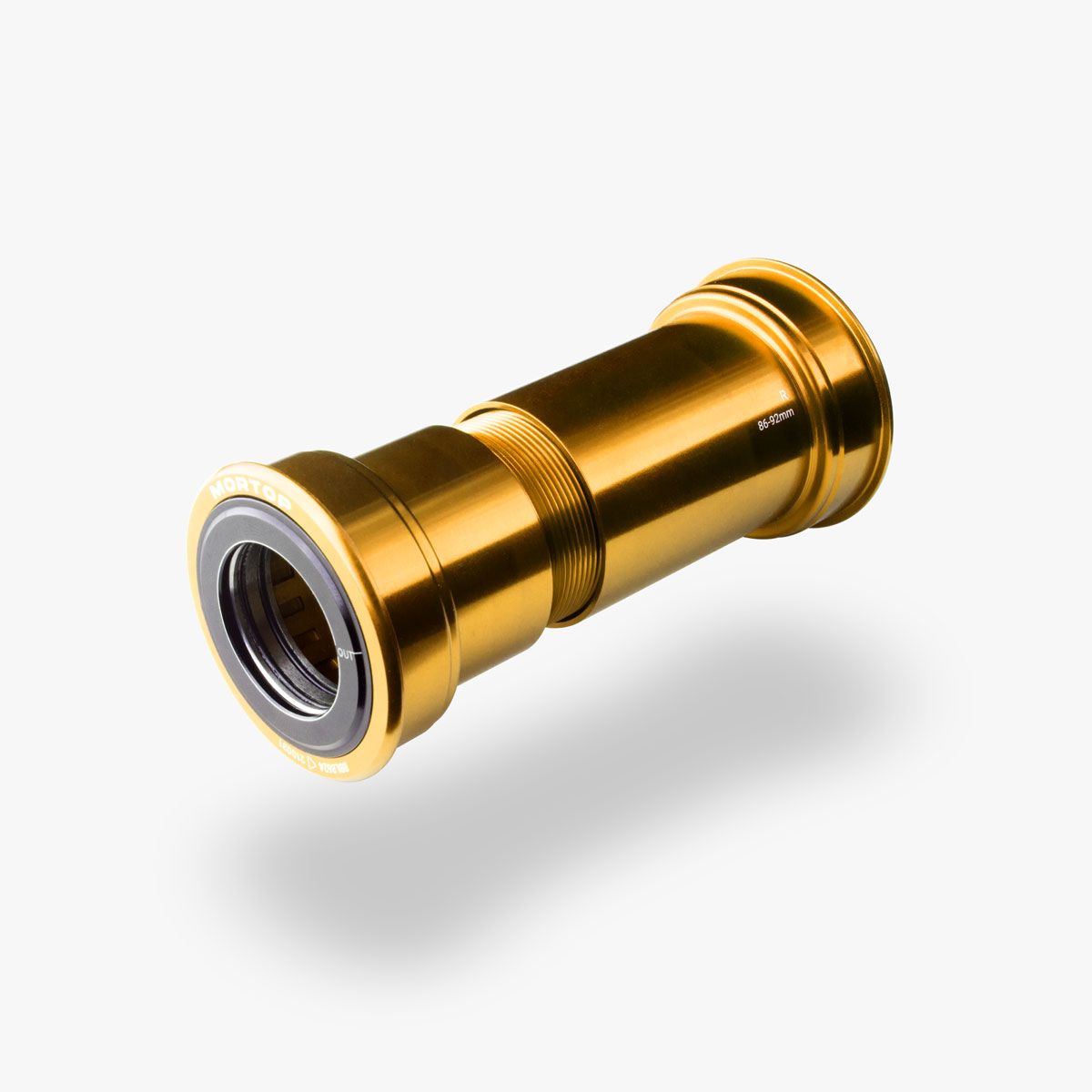

Spinning BB86 Series

$158.00 USD
Select Spindle (mm)
Color
$158.00 USD

Information

This product features an innovative 20T internal locking design, significantly increasing the tool contact area and ensuring extremely even locking force, completely eliminating the nightmare of stripped threads on traditional bottom brackets. Combined with a revolutionary quick-release mechanism, it simplifies the previously cumbersome disassembly and maintenance process, drastically reducing preparation time. Precisely compatible with ISIS international standard crankshafts and BSA24 bottom bracket systems, it's a direct upgrade without modification. This is not just a bottom bracket; it's the ultimate core for upgrading your cycle and pushing your limits. Weight reduction directly leads to top performance, allowing you to ride with effortless power!

Part No.   Spindle   Bearing    Weight
L8622S    24/22mm    Cartridge    114.8g
L8622C    24/22mm    Ceramic    113g

Accessories: 2ps x 1mm & 5mm spindle spacers (24mm ID), 2 x Spring Spacer.

Part No.   Spindle  Bearing   Weight
L8624S   24mm  Cartridge    113.6g
L8624C   24mm  Ceramic    111.4g

Accessories: 2ps x 1mm & 5mm spindle spacers (24mm ID).

Material: 7075-T6 Aluminium

Included: 2 Bottom Bracket cups
2 Mortop Bearings
2 Dust covers
2 1mm Ø30mm spacer (30mm specification accessories)
10 1mm Ø29mm spacer , 2 0.5mmØ29mm spacer (29mm specification accessories)

Features

Tapered Profile

Fun5 bearing technology not only enables automatic coaxialisation for improved power output. Its easy maintenance feature ensures that it can operate smoothly for extended periods, while angular contact further enhances its reliability and longevity.

The Art of Stability

The 20T internal locking mechanism not only has greater installation fault tolerance while maintaining a sleek appearance, but also features a Thread Together structure that prevents foreign objects from entering. This increases rigidity, enabling it to conquer more challenging terrains. This innovative design provides cyclists with greater confidence and control during rides, making it an ideal choice for adventurous and rugged terrain.

Ceramic Rolling

This technology incorporates ceramic beads with low resistance that are immune to rust, deformation, and bonded with nano grease. These features provide the benefits of reduced resistance, faster running speeds, and exceptional water resistance, surpassing the performance of conventional steel balls.

Specifications

Item Spec Shell DIA Shell Width Crankset Weight
L30AC BB30 42mm 68/73mm 30mm axle crankset 120.5g
L3029AC BB30 42mm 68/73mm Sram DUB 120.5
LPF30AC PF30 46mm 68/73mm 30mm axle crankset 165.3g
LPF3029AC PF30 46mm 68/73mm Sram DUB
LRIGHT30AC RIGHT 46mm 79mm 30mm axle crankset
LRIGHT29AC RIGHT 46mm 79mm Sram DUB
L38630BC BB386 46mm 86.5mm 30mm axle crankset -
L38629BC BB386 46mm 86.5mm Sram DUB -
